M-II DX USA
ESP USA

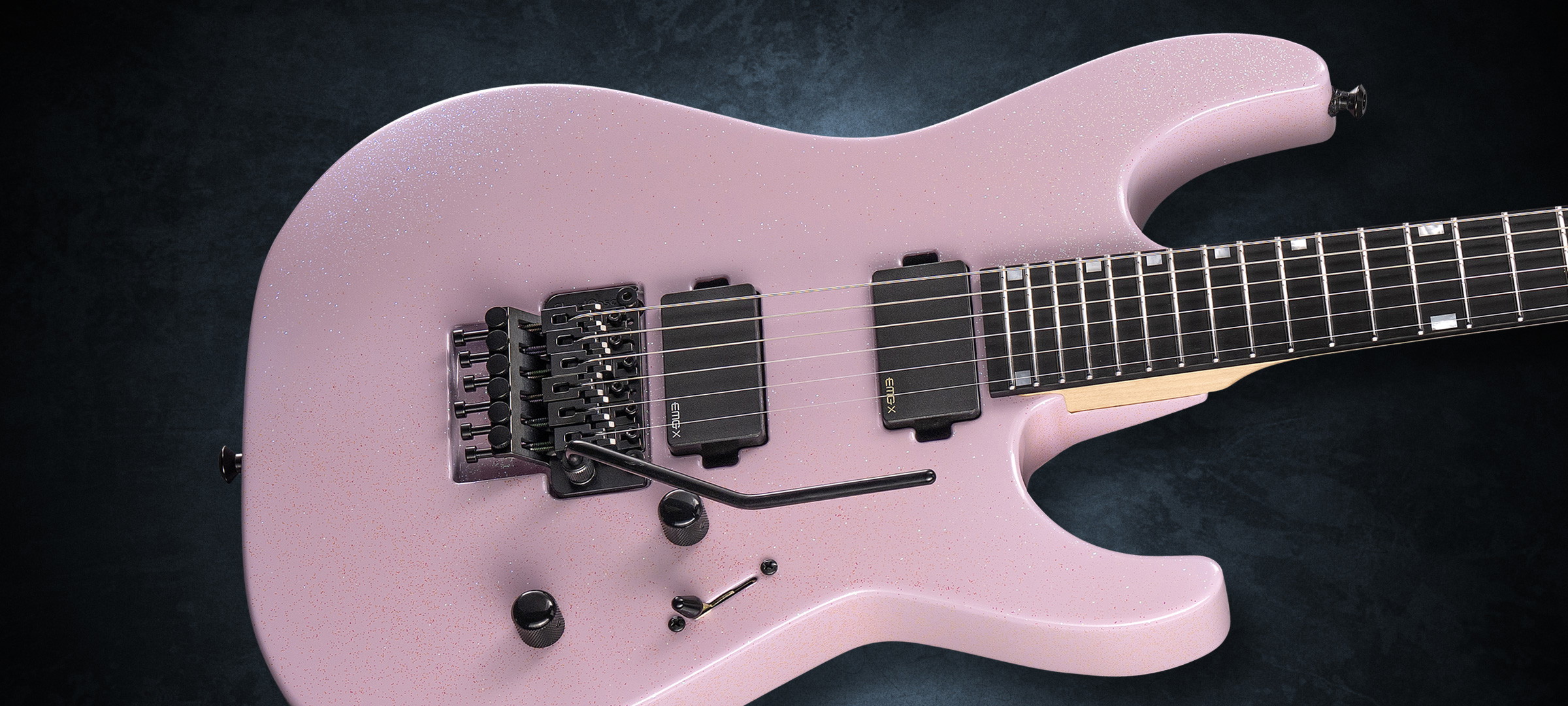

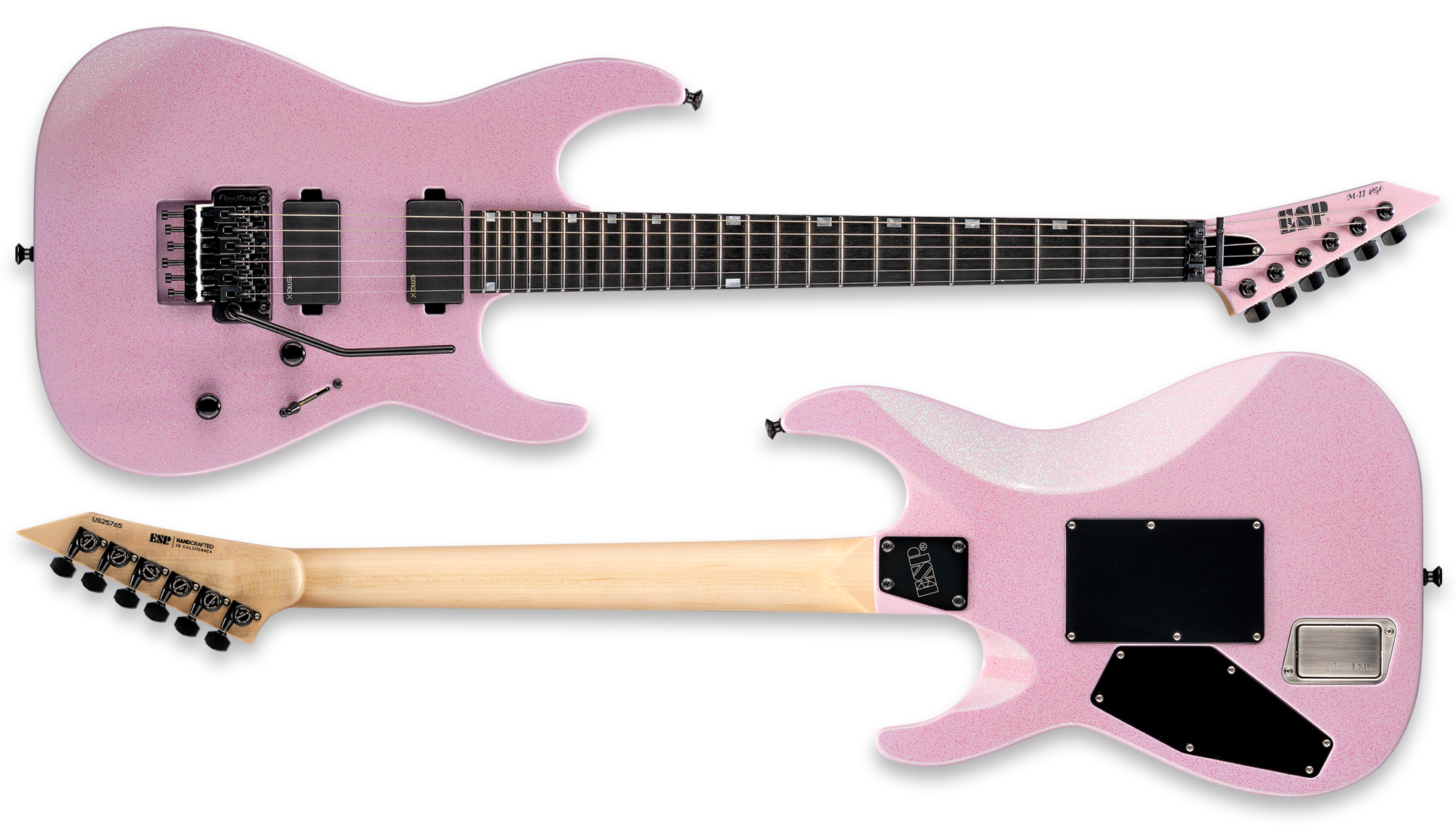

M-II DX USA
The M-II DX USA is a high-end take on one of the world’s most beloved shred guitars. Crafted by the team of expert luthiers at the ESP USA facility in Southern California, it offers sturdy bolt-on construction at 25.5” scale, pairing its flat-topped body to a three-piece maple neck. This guitar also offers an ebony fingerboard with clean mother-of-pearl offset block inlays and 24 extra-jumbo Jescar stainless steel frets, and a reverse headstock.
Components offered on the M-II DX USA are second to none, and include a Floyd Rose Original double-locking tremolo bridge, Gotoh Magnum Lock tuners, and Dunlop Straplok buttons. You can personalize the M-II DX USA with a variety of finishes, top woods (sold color, flamed maple, or quilted maple), pickups, and hardware.
The M-II DX USA includes a custom ESP USA form-fitting hardshell case, and an official Certificate of Authenticity from ESP.
FEATURES
Graphite Neck Reinforcement Bars
Get maximum strength and stability from your guitar’s neck, with higher long-term reliability. All ESP USA models are made with two high-strength bars of carbon fiber.
Drop Top w/ Natural Masked Binding
The droptop design on many of our ESP USA models allows for the beauty of a figured top that’s bent over the arm contour, adding a little brightness to the overall sound while retaining the warmth of the body wood. The natural masked binding — available on many finishes — adds amazing visual contrast.
Deep Dish Jack
In addition to looking sleek, the Deep Dish jack installed on ESP USA models has the added benefit of providing the depth and angle of the cable to be easily looped around the player’s strap to better protect the cable from crimps or other damage.
BODY
- CONSTRUCTION:
- Bolt-On
- WOOD TYPE:
- Mahogany
- THICKNESS:
- 45mm
- AVAILABLE TOP WOODS:
- No top (solid finishes), Maple Cap (Ghost Flame, Hellfire, Psychedelic Flame), Flamed Maple, Quilted Maple
- AVAILABLE COLORS:
- See Configurator
NECK
- WOOD TYPE:
- 3Pc Maple
- FINGERBOARD:
- Ebony
- SCALE LENGTH:
- 25.5”
- NUT WIDTH:
- 43mm
- NUT TYPE:
- R3 Locking
- FINGERBOARD RADIUS:
- 305mm
- NECK CONTOUR:
- Extra Thin U
- THICKNESS @ 1ST FRET:
- 19mm
- THICKNESS @ 12TH FRET:
- 21mm
- FRETS:
- 24 JESCAR FW57110 XJ Stainless
- NECK FINISH:
- Natural Satin
- HEAD CAP:
- Matching Top
- TRUSS ROD:
- 2 Way Adjustable w/ Graphite Reinforcements
HARDWARE
- BRIDGE:
- Floyd Rose Original
- TUNERS:
- Gotoh Magnum Lock
- STRAP BUTTONS:
- Dunlop Straplok
- AVAILABLE HARDWARE COLORS:
- Chrome / Black / Gold
ELECTRONICS
- AVAILABLE PICKUPS:
- Seymour Duncan Set / EMG Set / Fishman Set
- CONTROLS:
- Volume/Tone/3-Way Switch
PLAYABILITY & SETUP
- STRINGS:
- D’Addario NYXL SUP LITE (.009 - .042)
- CASE:
- ESP USA Form Fit
PRICING AND SPECIFICATIONS SUBJECT TO CHANGE
